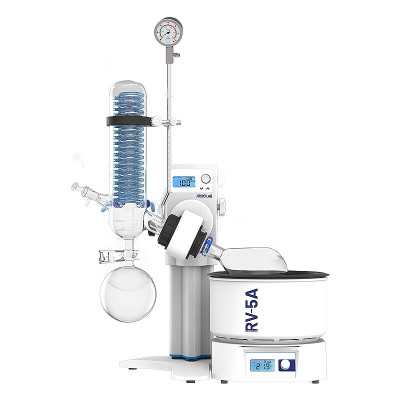

Rotary Evaporator RV-5A

New

Features

Motorized lift for smooth and precise positioning of the evaporation column.

LCD display with control knob for fast access to key operating parameters.

Over-temperature safety alarm.

PTFE vacuum seals ensuring excellent chemical resistance and long-term vacuum stability.

Vent valve for controlled introduction of air into the system.

WATER BATH (Ambient +5 °C … 99 °C): ideal for delicate evaporations.

Included Accessories

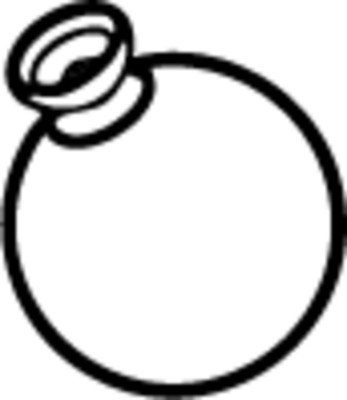

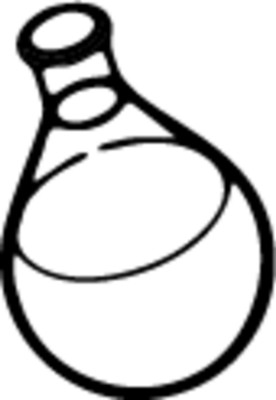

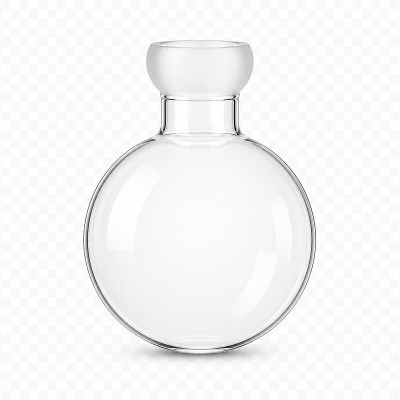

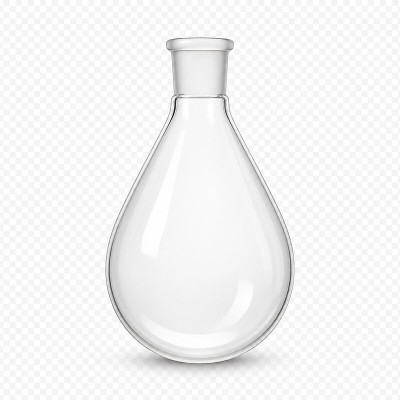

The RV-5A is supplied with 2 connection pipes, a 1000 ml evaporating flask (NS 29/32 conical joint) and a 1000 ml receiving flask (KS 35 spherical joint) — the ideal standard configuration for most laboratory applications.

Documentation

Brochure Technical Specification Technical Specification

Product Code

41203012

Category

Rotary Evaporator

Security class: 3.1
Frequency: 50/60
Warranty: 2
Weight (with packaging, no rotor): 30
Absorbed power: 1000
Temperature resolution: 0,1
Timer: 99:59 o continuo
Type of motor: DC brushless
Useful volume: 5
Power supply: 230
Supplied as standard: Set of 2 x 1,5 m pipes with insulating material
Overtemperature security: Electronic and electromechanical
Working temperature: RT+5°C ... 99
Display: LCD
Regulations: 2014/30/EU, 2014/35/EU, 2011/65/EU, 2006/42/EC, EN 61010-1:2010+A1:2019, EN 61326-1:2021, EN 61010-1:2010+A1:2019, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 60204-1:2018, EN ISO 12100:2010
Packaging dimensions (W x D x H): 670 x 620 x 620 mm
Rotation speed: 20-300 rpm
Evaporating Speed: 22 ml/min
Speed settings: LCD display with knob
Temperature settings: LCD display with knob
Lift: Automatic
Condenser: Coil, condensation areas: 0.15m²
Glassware supplied as standard: 1000ml evaporating flask (NS 29/32), 1000ml receiving flask (KS 35/20)
Gaskete: PTFE
Bath material: Stainless Steel and PTFE
Internal Bath Dimensions: Φ 230 x 130 mm
External dimensions (with glassware) WxDxH: 470 x 400 x 710-810
Lift Stroke: 100 mm
